CDS347

Process First Data Payeezy Gateway Transaction

 Last Revised: 12/21/17

This called routine is used to process a transaction using the First Data Payeezy Gateway previously known as e4. Note that his is not the same as the First Data Global Gateway. See CDS346 for Global Gateway support.

CDS347 is compatible with linux/unix/aix servers that have curl version 7.43 or newer, openssl, xxd, and base64 commands installed. Note that effective with CDS347 versions dated 12/21/17 or later, tls version 1.2 will be used as required by First Data.

Calling Format:

CALL "CDS347", ERR=XXXX, Y$, S347$

CDS347 Arguments
Argument Passed
To/From		 Variable Length Description
ERR= N/A     Takes error branch if any of the 4 gateway arguments are not provided, or if the curl, openssl, or base64 commands are not found in the PATH, or if there is no reply from the processor within 30 seconds.
Y$ To   N/A Session Control Variable
S347$ To .GATEWAYID$ 9 Gateway ID. These 4 Gateway arguments can be obtained by logging in to the e4 gateway https://globalgatewaye4.firstdata.com/
  To .GATEWAYPWD$ 8 Gateway Password
  To .KEYID 6 Gateway KeyID
  To .HMACKEYID$ 32 Gateway HMAC Key
  To .MODE$ 1
P Production Mode, connects to live site
T Testing only, connects to demo site
  To .SONO$ 20 Pass sales order# or invoice# to populate the gateway's reference number field.
  To .PMTNO 8 Pass payment number or other reference to populate the gateway's customer reference number field.
  To .TRANSTYPE$ 2
00 Purchase
01 Pre-Authorization
02 Pre-Authorization Completion
03 Forced Post
04 Refund
05 Pre-Authorization Only
07 PayPal Order
13 Void
32 Tagged Pre-Authorization Completion
33 Tagged Void
34 Tagged Refund
60 Secure Storage
CR Information Retrieval
  To .AMT 9 Transaction Amount, always positive, even for refunds
  To .TRACKDATA$ 75 Track 1 data returned by card swipe device, excluding sentinels
  To .CCNO$ 16 Pass the credit card#, digits only, when TRACKDATA is not provided.
  To .EXPDATE$ 4 Pass the card expiration date in MMYY format, when when TRACKDATA$ is not provided.
  To .CVD$ 3-4 Card Security Code.  4 numeric digits for American Express Cards, 3 numeric digits for all other cards.
  To .CVDREASON 1
0 Not Supported
1 CVD Code Provided
2 CVD Illegible
9 Cardholder states data is not available
  To .CCNAME$ 30 Pass the card holder's name.  Not required with TRACKDATA$ is passed.
  To .CCADDR1$ 30 Pass the card holder's 1st line of billing address.  Used when address verification is desired.
  To .CCADDR2$ 28 Pass the card holder's 2nd line of billing address if necessary.  Used when address verification is desired.
  To .CCCITY$ 20 Pass the card holder's billing city.  Used when address verification is desired.
  To .CCSTATE$ 2 Pass the card holder's billing 2 character state code.  Used when address verification is desired.
  To .CCZIP$ 10 Pass the card holder's billing zip code.  Used when address verification is desired.
  To .CCCOUNTRY$ 2 Pass the card holder's billing ISO country code when not in U.S.
  To .PHONENO$ 14 Pass the card holder's telephone number.
  To .PHONEYTPE$ 1
H Home
W Work
D Day
N Night
  To .EMAIL$ 30 Pass the cardholder's email address
  To .PROCESSEDBY$ 30 Displayed on the gateway web site
  To .ORIGIN$ 1

Ecommerce indicator. Click here for additional information.

1 MOTO Single Transaction
2 MOTO Recurring Transaction
3 MOTO Installment Payment
4 MOTO Deffered Transaction
5 Secure Electronic Commerce Transaction
6 Non-Authenticated Electronic Commerce Transaction
7 Channel Encrypted Transaction (SSL, no authentication)
8 Non-Secure Electronic Commerce Transaction
I Interactive Voice Response (IVR) - PINless Debit only
R Retail - cardholder present
  To .TPP_ID$ 6 Optional third party partner ID
  To/From .AUTHNO$ 8 Returned by card processor during an authorization transaction. Pass back to card processor when charging or voiding original authorization.
  To/From .ORDERID$ 10 Unique transaction number generated by card processor.  It should be stored in your application instead of the credit card#, expiration date, and security code.  Pass to CDS347 when voiding a prior authorization or charge transaction, when charging a prior authorization transaction, or when refunding a prior charge.
  From .IPADDR$ 15 Useful for logging and fraud investigation
  From .ERROR 1
0 No Error
1 Gateway Error such as missing or invalid fields provided
7 Missing credentials
8 Missing command (openssl, base64, curl)
9 No response from card processor
  From .APPROVED 1
0 Not approved
1 Approved
  From .GWRESPCODE$ 2 Gateway Response Code. Click here for more information.
  From .GWRESPMSG$ 50 Gateway Response Message based on the GWRESPCODE.
  From .BANKRESPCODE$ 3 Bank Response Code.
  From .BANKRESPMSG$ 80 Bank Response Message. May provide details when a transaction is declined.
  From .SEQNO$ 50 A number assigned by the Gateway for tracking and audit purposes
  From .RETRIEVALREFNO$ 13 The reference number returned with an AVS Result.
  From .CARDTYPE$ 12+ Possible values include "American Express", "Visa", "Mastercard", "Discover", "Diners Club", "JCB", "Gift Card", "PayPal".
  From .CVDRESPCODE$ 1 Code describing the accuracy of the card security code
MMatch
NNo Match
PNot Processed
SShould have been present
UIssuer unable to process request
  From .AVSRESPCODE$ 1 Codes that indicate if the Address and Zip Code provided match the bank's records for the cardholder.
Xexact match, 9 digit zip
Yexact match 5 digit zip
Aaddress match only
W9 digit zip match only
Z5 digit zip match only
Nno address or zip match
Uaddress unavailable
Gnon-North American issuer, does not participate
Rissuer system unavailable
Enot a Mail\Phone order
Sservice not supported
QBill to address did not pass edit checks
DInternational street address and postal code match
BInternational street address match, postal code not verified due to incompatible formats
CInternational street address and postal code not verified due to incompatible formats
PInternational postal code match, street address not verified due to incompatible format
1Cardholder name matches
2Cardholder name, billing address, and postal code match
3Cardholder name and billing postal code match
4Cardholder name and billing address match
5Cardholder name incorrect, billing address and postal code match
6Cardholder name incorrect, billing postal code matches
7Cardholder name incorrect, billing address matches
8Cardholder name, billing address, and postal code are all incorrect
  From .AVSRESPMSG$   Description of AVSREPSCODE$ code
  From .JSONTO$ 100+ JSON formatted text sent to the card processor. Useful only for debugging purposes.
  From .JSONFROM$ 100+ JSON formatted text received from the card processor. Useful only for debugging purposes.
Example

1700 TEST:

1710 BEGIN

1720 CALL "CDS091",Y$

1730 CALL "CDS041","CDS347",S347$,"YY"

1740 LET S347.GATEWAYID$="AF8898-01",S347.GATEWAYPWD$="xxxxxxxx"

1750 LET S347.KEYID=123564,S347.HMACKEY$="12345678901234567890123456789012"

1760 LET S347.MODE$="T"; REM "Testing site

1770 LET S347.SONO$="987654"

1780 LET S347.PMTNO=888111

1790 LET S347.TRANSTYPE$="00"; REM "Purchase

1800 LET S347.AMT=1.23

1810 LET S347.CCNO$="4111111111111111"

1820 LET S347.EXPDATE$="0515"

1830 LET S347.CVD$="123"

1840 LET S347.CCNAME$="Test Visa Card"

1850 LET S347.CCADDR1$="8050 Corporate Cir Ste 1"

1860 LET S347.CCCITY$="North Royalton"

1870 LET S347.CCSTATE$="OH"

1880 LET S347.CCZIP$="44133"

1890 LET S347.PHONENO$="4408666893"

1900 LET S347.PHONETYPE$="W"

1910 LET S347.PROCESSEDBY$="Len Krause"

1920 CALL "CDS347",Y$,S347$

1930 CALL "CDS279",S347$

1940 PRINT 'CS',S347.JSONFROM$

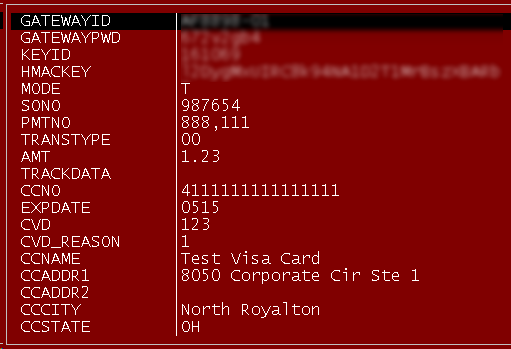

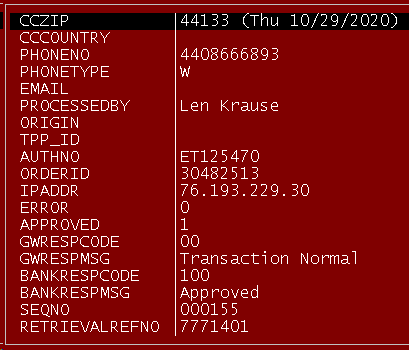

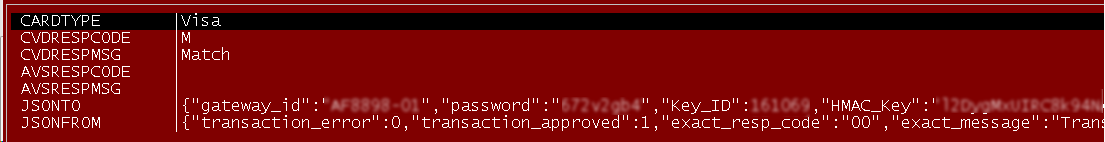

Results
